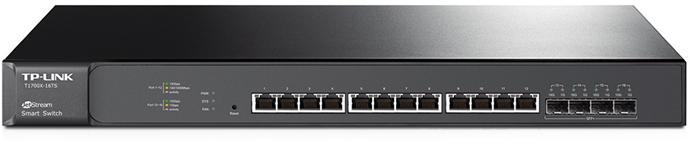

TP-Link Jetstream 12-Port 10GBase-T Smart Managed Switch with 4 10G SFP+ Slots
• Equipped with 12 10GBase-T RJ45 Ports and 4 10G SFP+ Fiber Ports • 320Gbps Switching Capacity • 16K MAC Address Table • L2+ feature • Packet Forwarding Rate : Up to 238.1Mpps • Jumbo Frame : 9KB • Number of Static Routes: 32 IPv4 • Number of IP Interfaces: 16 • Two Smart Fans
NIVO#: 59220
Line: JetStreamModel: T1700X-16TS
Warranty: 2 years
Our price:
R 29,198.99
 (incl. VAT)
Availability  check now
Shipping time 2-4 business days
Shipping cost calculate
New to Online Shopping? Read our Shopping Guide.
things to do ...
Overview & Features top

TP-Link Jetstream 12-Port 10GBase-T Smart Switch

  • Equipped with 12 10GBase-T RJ45 Ports and 4 10G SFP+ Fiber Ports, providing 320Gbps Switching Capacity
  • 10GBase-T Technology provides a cost-effective method for migrating from current network to 10G Ethernet by utilizing existing CAT5e/CAT6 short connections (up to 55m) and CAT6A/CAT7 connections (up to 100m).
  • L2+ feature, Static Routing help route internal traffic for more efficient use of network resources
  • Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication
  • Comprehensive IPv6 support for management, QoS and ACL
  • WEB/CLI managed modes, SNMP, RMON enhance management
  • Dual Firmware Image improves reliability and up-time of your network

Affordable 10-Gigabit Switching Solution for Growing SMBs

In a world of expanding enterprises and growing virtualization, cloud-based services and applications, like VoIP, HD streaming video, and IP surveillance, SMB networks need to evolve beyond simple reliability to provide increased scalability, higher bandwidth, and enhanced performance. TP-LINK’s new T1700 Series 10G Smart Switches represent an ideal solution that meets these requirements. The series includes the T1700X-16TS Full 10-Gigabit Smart Switch and the T1700G-28TQ Gigabit Stackable Smart Switch with 10G Uplink, which both provide high levels of performance, scalability, and cost-effectiveness that SMBs require from their 10G networking solutions.

Future-Proof 10GBase-T Technology

Until recently, 10-Gigabit connectivity was available only in the expensive fiber based technology that supports high-speed access to the network backbone or data center environment.

Today, 10GBase-T Technology is becoming more common and affordable. Low-Latency, Line-Rate 10G Copper Base-T is backward compatible with Fast Ethernet and Gigabit Ethernet and can automatically negotiate between higher and lower speed connections. Most importantly, 10GBase-T provides a cost-effective method for migrating from your current network to 10G Ethernet by utilizing your existing CAT5e/CAT6 RJ-45 short connections (up to 55m) and CAT6A/CAT7 connections (up to 100m). This reduces cabling complexity and ultimately results in significant savings for customers.

16 10-Gigabit Ports, 320Gbps Switching Capacity

The T1700X-16TS features 12 10GBase-T RJ45 ports and four dedicated SFP+ fiber slots, which can support up to 320Gbps of combined switching bandwidth. This provides great resiliency, relieves congestion associated with bandwidth-intensive applications, and guarantees smooth data transmission.

Software Features

L2+ Static Routing

Simple network segmentation, with internal routing through the switch, allows devices in different VLANs/subnets to communicate with each other and makes the flow of network traffic more efficient.

Abundant L2 Features

T1700 Series devices are equipped with a full lineup of L2 features that meet your current and future needs for unified networking and mobility.
  • 802.1Q/MAC/Protocol/Private VLAN1
  • Link Aggregation Group (LAG)
  • IGMP & MLD Snooping
  • Multicast VLAN

Robust Security Strategies

Support for numerous security strategies allow you to create a secure, unified network by preventing unauthorized access, external attacks, and malware infiltration.
  • Access Control List (ACL)
  • DHCP Snooping
  • 802.1x Authentication
  • IP-MAC-Port Binding

Comprehensive QoS Features

Advanced controls provide optimized network performance and efficient delivery of time-sensitive traffic.
  • Port-Based or 802.1p-Based Prioritization
  • Layer 3-Based (DSCP) Prioritization
  • Rate Limit
  • Voice VLAN

IPv6 Support

The T1700 Series offers comprehensive IPv6 features, including IPv6 management, Static Routing, ACL, and QoS2, which ease the transition to an IPv6-based network and protect the value of your investment.

Dual Image

Dual image firmware reduces downtime when the firmware is being updated. The backup image will also be activated in the event that any error occurs on the active image.
What's in the Box top
  • T1700X-16TS
  • Power Cord
  • Installation Guide
  • Resource CD
  • Rackmount Kit
  • Rubber Feet
Specification top
General
Product Type
Switch
Usage
Office
Product Line
JetStream
Speed
Gigabit
Form Factor
Rack-mountable
Stackable
-
Management Type
Web Managed
Supported Standards
IEEE 802.1d
IEEE 802.1p
IEEE 802.1q
IEEE 802.1s
IEEE 802.1w
IEEE 802.1x
IEEE 802.3 an
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3ae
IEEE 802.3i
IEEE 802.3u
IEEE 802.3x
IEEE802.3z
Features
802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group)
802.3x Flow Control
BPDU Filtering/Guard
IGMP Snooping V1/V2/V3
Loopback detection
MAC/Protocol-based VLAN
Private VLAN
Spanning Tree STP/RSTP/MSTP
Static Routing
Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
TC/Root Protect
Voice VLAN

Ports
Port Type
SFP
Gigabit LAN
Total Ports
16
Gigabit RJ45 Ports
12
Gigabit SFP Ports
4

Performance
Switching Method
Store-and-Forward
Switching Capacity
320 Gbps
MAC Address Table
16 K

Physical Specification
Width
440 mm
Height
220 mm
Depth
44 mm
Weight
2,300 grams
