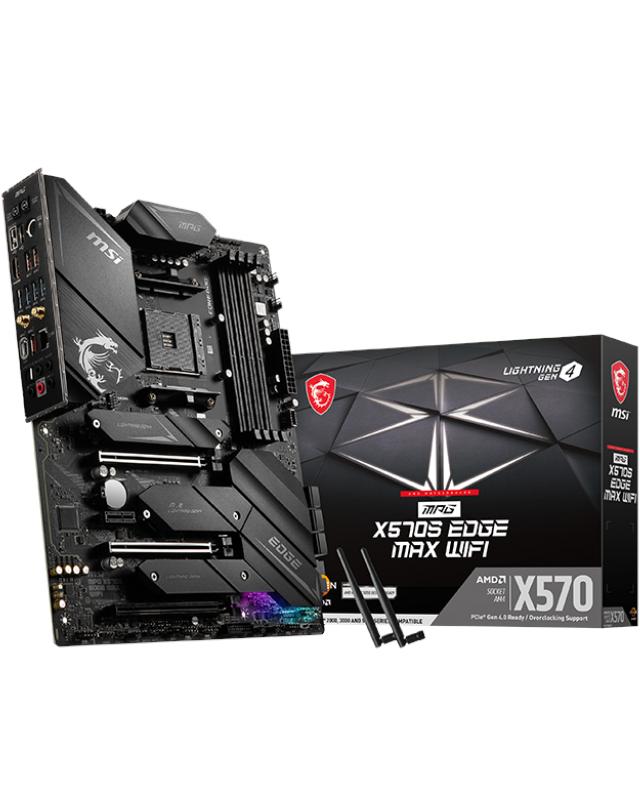

MSI MPG Series AMD AM4 ATX X570S EDGE MAX WIFI Gaming Motherboard (MPGX570SEDGEMAXWIFI)
• 128GB Max DDR4 Memory
• 3x PCIe x16, 1x PCIe x1
• 3x M.2, 6x SATA 3.0, 0/1/10 RAID
• 6x USB 2.0
• 4x USB 3.2 Type A, 1x HDMI, 5 Audio
• Realtek 8125B 2.5G LAN LAN, & Bluetooth
• Realtek ALC4080 CODEC Audio Chip, 8 Audio Channel
• Pre-installed I/O Shield
• MOSFET thermal pads
Our price: | R 7,399.95 | (incl. VAT) |
New to Online Shopping? Read our Shopping Guide.
things to do ...
go to ...
find more ...
Overview & Features
top
topWhat's in the Box top
top- MSI MPG X570S EDGE MAX WIFI AM4 ATX Motherboard – Black x1
- SATA cables x2
- Standoff Screws/Sets x3
- USB Drive x1
- Cleaning Brush x1
- Thermistor Cable x1
- Rainbow RGB LED Extension Cable x1
- MPG Stickers Pack x1
- Quick Install Guide x1
- User Manual x1
Specification top
top| General | |
| Manufacturer Code | MPGX570SEDGEMAXWIFI |
| Product Line | MPG Series |
| Product Type | Motherboard |
| Processor Socket | AM4 |
| Form Factor | ATX |
| Chipset | AMD X570 Chipset |
| Supported Processors | AMD Ryzen 5000 Series, 5000 G-Series, 4000 G- Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G- Series |
| Memory | |
| Memory Channels | Dual |
| Memory Type | DDR4 |
| Memory Slots | 4 |
| Memory Bandwidth | DDR4 Memory: 5300(OC) / 5200(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)/ 1866(JEDEC) MHz |
| Max System Memory | 128 GB |
| ECC Support | - |
| Rear Panel Connectors | |
| USB 2.0 | 6 |
| USB 3.2 Type-A | 4 |
| USB 3.2 Type-C | 2 |
| D-Sub (VGA) | - |
| DVI | - |
| HDMI | 1 |
| LAN (RJ45) | 1 |
| S/PDIF Ports | 5 |
| Expansion Slots | |
| PCI Express x16/x8/x4 | 3 |
| PCI Express x1 | 1 |
| Graphics System | |
| Integrated Video | - |
| Multi-GPU Support | - |
| Networking | |
| Wired LAN | Realtek 8125B 2.5G LAN |
| Wireless LAN | Intel Wi-Fi 6E AX210 |
| Bluetooth | Yes Bluetooth 5.2 |
| Storage System | |
| M.2 Ports | 3 |
| SATA 3.0 Ports | 6 |
RAID  |
0/1/10 |
| Optane Support | - |
| Audio | |
| Integrated Audio | Yes |
| Audio Chip | Realtek ALC4080 CODEC |
| Channels | 8 |
