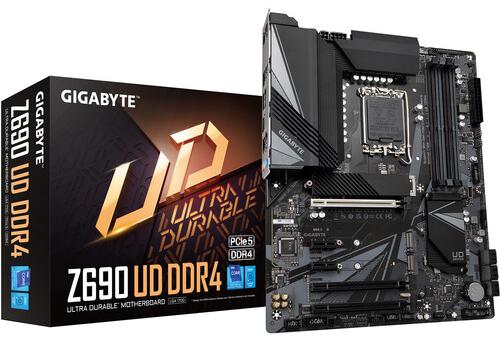

Gigabyte UD Series Intel Z690 Socket LGA1700 ATX Motherboard (Z690 UD DDR4)
• ATX Form Factor
• Intel Z690 Chipset
• LGA1700 CPU Socket
• 4 x Dual-Channel DDR4 RAM Slots
• 6 x SATA III, 3 x M.2
• 1 x PCIe 5.0 x16, 2 x PCIe 3.0 x16 Slots
• 2 x PCIe x1 Slots
• Realtek 2.5 GbE LAN
• USB 3.2 Gen 1, Gen 2, Gen 2x2
• Realtek 7.1-Channel Audio
Our price: | R 4,759.95 | (incl. VAT) |
New to Online Shopping? Read our Shopping Guide.
things to do ...
Overview & Features
top
topSpecification top
top| General | |
| Manufacturer Code | GA-Z690-UD-DDR4 |
| Product Line | UD Series |
| Product Type | Motherboard |
| Processor Socket | LGA1700 |
| Form Factor | ATX |
| Chipset | Intel Z690 |
| Supported Processors | 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors |
| CPU Gen Support | 12th Gen |
| Memory | |
| Memory Channels | Dual |
| Memory Type | DDR4 |
| Memory Slots | 4 |
| Memory Bandwidth | DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz |
| Max System Memory | 128 GB |
| ECC Support | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Rear Panel Connectors | |
| USB 2.0 | 4 |
| USB 3.2 Type-A | 5 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports |
| USB 3.2 Type-C | 1 |
| D-Sub (VGA) | <not specified>
|
| DVI | <not specified>
|
| HDMI | 1 |
| Display Port | 1 |
| LAN (RJ45) | 1 |
| OFC Audio Jacks | 3 |
| PS/2 Mouse/Keyboard Combo | 1 |
| Expansion Slots | |
| PCI Express x16/x8/x4 | 3 |
| PCI Express x1 | 2 |
| Graphics System | |
| Integrated Video | Integrated Graphics Processor-Intel HD Graphics |
| Multi-GPU Support | Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
| Internal I/O Connectors & Headers | |
| 24-pin ATX Power Supply Connector | 1 |
| 8-pin ATX 12V Power Connector | 1 |
| 4-pin ATX 12V Power Connector | 1 |
| System/Chassis FAN Headers | 4 |
| TPM Module Connector | 1 |
| Clear CMOS Jumper | 1 |
| Thunderbolt Connector | 2 |
| CPU FAN Connector | 1 |
| 4-pin Water Pump Fan Connector | 1 |
| Addressable LED Strip Headers | 2 |
| 4-pin RGB LED Connector | 2 |
| S/PDIF Header | 1 |
| On-Board Reset Button | 1 |
| USB 2.0 Headers | 2 |
| USB 3.2 Headers | 1 |
| USB Type C Header | 1 |
| Front panel audio header | 1 |
| Front Panel Connector | 1 |
| Serial Port Header | 1 |
| Q Flash Plus Button | 1 |
| Networking | |
| Wired LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Storage System | |
| M.2 Ports | 2 |
| SATA 3.0 Ports | 6 |
RAID  |
0/1/5/10 |
| Optane Support | Yes |
| Audio | |
| Integrated Audio | Yes |
| Audio Chip | Realtek Audio CODEC |
| Channels | 2/4/5.1/7.1 |
