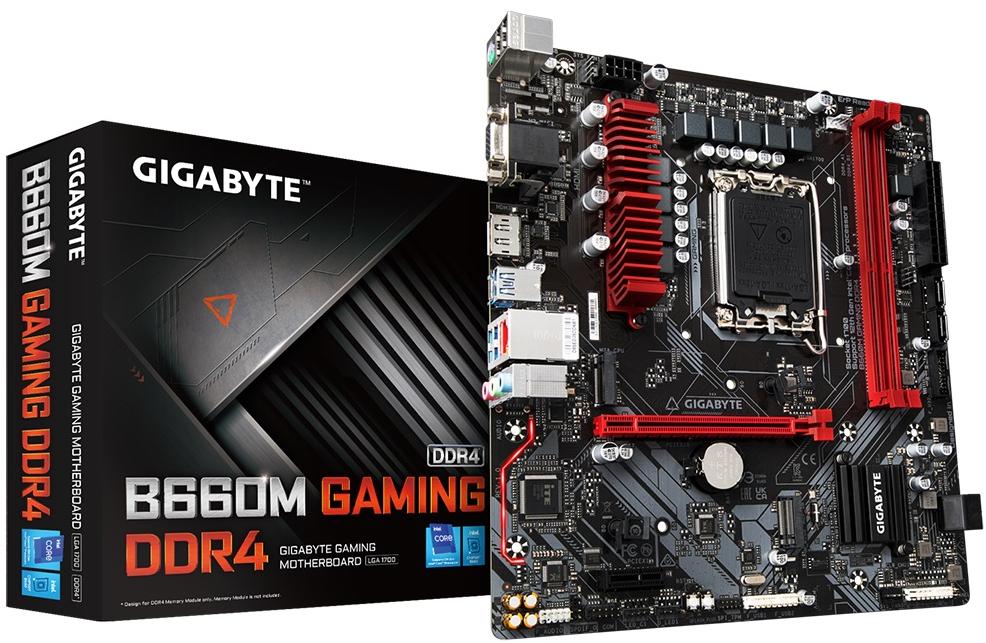

Gigabyte Gaming Series Intel B660 LGA1700 Micro-ATX Motherboard (B660M GAMING DDR4)
• 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink
• 64GB DDR4 Max Memory
• 2 x DDR4 DIMM sockets, Dual channel, Support for Extreme Memory Profile (XMP)
• Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2
• 4 x SATA 6Gb/s connectors, RAID 0/1/5/10, Intel Optane Memory Ready
• 1 x PCI Express x16 slot, running at x16, 1 x PCI Express x1 slot
• Fast 2.5 GbE GAMING LAN with Bandwidth Management
• High Definition Audio 2/4/5.1/7.1-channel
• RGB FUSION 2.0 supports Addressable LED & RGB LED Strips
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Our price: | R 2,719.95 | (incl. VAT) |
New to Online Shopping? Read our Shopping Guide.
Overview & Features
top
topSpecification top
top| General | |
| Manufacturer Code | B660M GAMING DDR4 |
| Product Line | Gaming Series |
| Product Type | Motherboard |
| Processor Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Chipset | Intel B660 |
| Supported Processors | 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| CPU Gen Support | 12th Gen |
| Memory | |
| Memory Channels | Dual |
| Memory Type | DDR4 |
| Memory Slots | 2 |
| Memory Bandwidth | DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules |
| Max System Memory | 64 GB |
| ECC Support | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Rear Panel Connectors | |
| USB 2.0 | 2 2 x USB 2.0/1.1 ports |
| USB 3.2 Type-A | 3 3 x USB 3.2 Gen 1 ports |
| USB 3.2 Type-C | 1 1 x USB 3.2 Gen 1 Type-C port |
| D-Sub (VGA) | 1 |
| DVI | <not specified>
|
| HDMI | 1 |
| Display Port | 1 |
| LAN (RJ45) | 1 |
| OFC Audio Jacks | 3 |
| PS/2 Mouse/Keyboard Combo | 1 |
| Expansion Slots | |
| PCI Express x16/x8/x4 | 1 1 x PCI Express x16 slot, running at x16 |
| PCI Express x1 | 1 1 x PCI Express x1 slot |
| Graphics System | |
| Integrated Video | <not specified>
|
| Multi-GPU Support | <not specified>
|
| Internal I/O Connectors & Headers | |
| 24-pin ATX Power Supply Connector | 1 |
| 8-pin ATX 12V Power Connector | 1 |
| System/Chassis FAN Headers | 3 |
| TPM Module Connector | 1 |
| Clear CMOS Jumper | 1 |
| CPU FAN Connector | 1 |
| Addressable LED Strip Headers | 1 |
| 4-pin RGB LED Connector | 1 |
| S/PDIF Header | 1 |
| On-Board Power Button | 1 |
| On-Board Reset Button | 1 |
| USB 2.0 Headers | 2 2 x USB 2.0/1.1 headers |
| USB 3.2 Headers | 1 1 x USB 3.2 Gen 1 header |
| Front panel audio header | 1 |
| Front Panel Connector | 1 |
| Serial Port Header | 1 |
| Q Flash Plus Button | 1 |
| Networking | |
| Wired LAN | Realtek 2.5GbE LAN chip |
| Storage System | |
| M.2 Ports | 2 |
| SATA 3.0 Ports | 4 |
RAID  |
0/1/5/10 |
| Optane Support | Yes |
| Audio | |
| Integrated Audio | Yes |
| Audio Chip | Realtek Audio CODEC |
| Channels | 2/4/5.1/7.1 |
