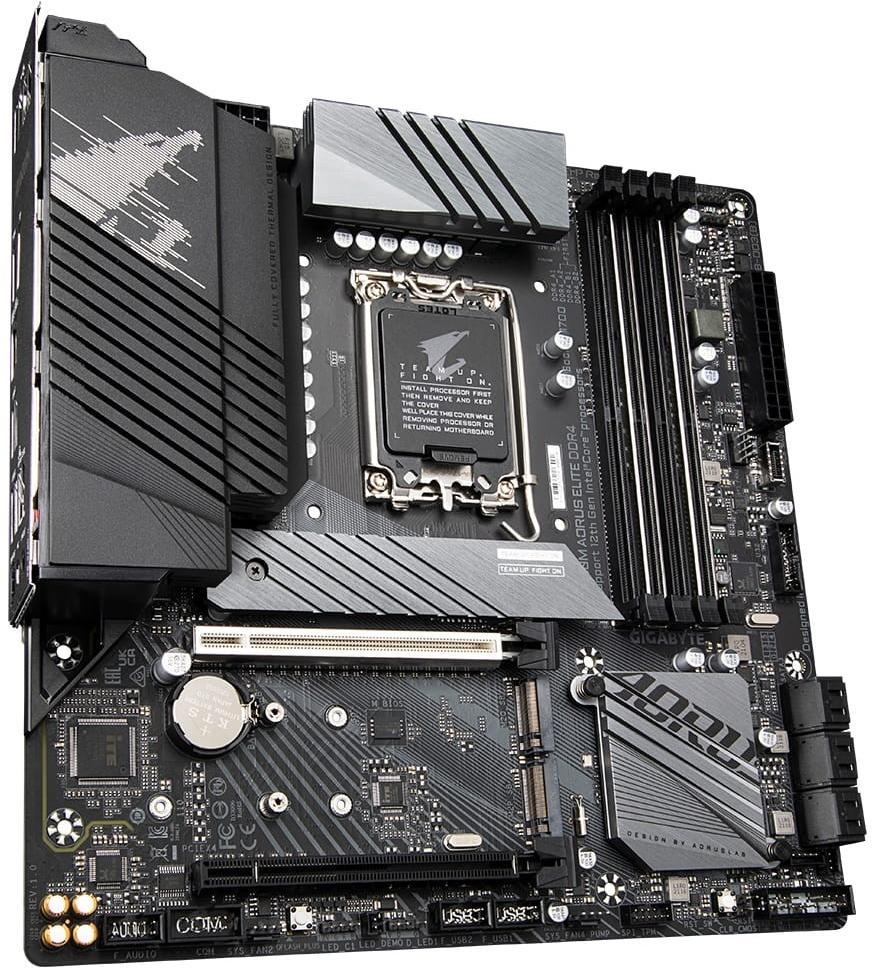

Gigabyte Aorus Series Intel Z690 Socket LGA1700 Micro-ATX Motherboard (Z690M-AORUS-ELITE-DDR4)
• LGA1700 socket • Support for 12th Generation Intel Core i9 • Intel Z690 Express Chipset • Support for 4 x DDR4 DIMM RAM • Integrated Graphics Processor-Intel HD Graphics • Realtek Audio CODEC • Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) • Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies • 3 x M.2, 6 x SATA 6Gb/s connectors •  Support for RAID 0, RAID 1, RAID 5, and RAID 10
NIVO#: 74549Mnf.#: GA-Z690M-AORUS-ELITE-DDR4
Warranty: 3 years
Our price:
R 3,699.95
 (incl. VAT)
Availability  check now
Shipping time 2-3 business days
Shipping cost calculate
New to Online Shopping? Read our Shopping Guide.
things to do ...
Overview & Features top
Specification top
General
Manufacturer Code
GA-Z690M-AORUS-ELITE-DDR4
Product Line
Aorus Series
Product Type
Motherboard
Processor Socket
LGA1700
Form Factor
Micro-ATX
Chipset
Intel Z690
Supported Processors
12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors

Memory
Memory Channels
Dual
Memory Type
DDR4
Memory Slots
4
Memory Bandwidth
DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
Max System Memory
128 GB
ECC Support
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Rear Panel Connectors
USB 2.0
4
USB 3.2 Type-A
5
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
USB 3.2 Type-C
1
D-Sub (VGA)
<not specified>
DVI
<not specified>
HDMI
1
Display Port
1
LAN (RJ45)
1
S/PDIF Ports
1 x Optical
OFC Audio Jacks
2

Expansion Slots
PCI Express x16/x8/x4
2
PCI Express x1
<not specified>

Graphics System
Integrated Video
ntegrated Graphics Processor-Intel HD Graphics
Multi-GPU Support
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

Internal I/O Connectors & Headers
24-pin ATX Power Supply Connector
1
8-pin ATX 12V Power Connector
1
4-pin ATX 12V Power Connector
1
System/Chassis FAN Headers
4
TPM Module Connector
1
Clear CMOS Jumper
1
Thunderbolt Connector
2
CPU FAN Connector
1
4-pin Water Pump Fan Connector
1
Addressable LED Strip Headers
2
4-pin RGB LED Connector
2
On-Board Reset Button
1
USB 2.0 Headers
2
USB 3.2 Headers
1
USB Type C Header
1
Front panel audio header
1
Front Panel Connector
1
Serial Port Header
1
Q Flash Plus Button
1

Networking
Wired LAN
Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Storage System
M.2 Ports
3
SATA 3.0 Ports
6
RAID
0/1/5/10
Optane Support
Yes

Audio
Integrated Audio
Yes
Audio Chip
Realtek Audio CODEC
Channels
2/4/5.1/7.1
