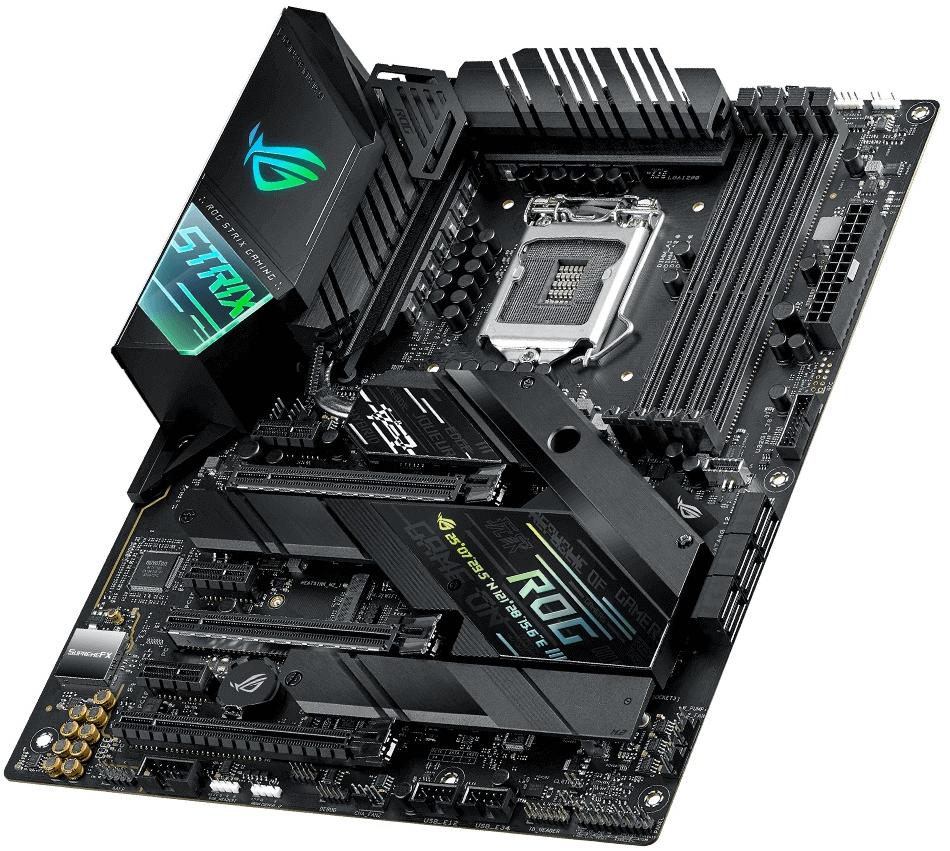

Asus ROG Series Intel Z490 Socket LGA1200 ATX Motherboard (ROG STRIX Z490-F GAMING)
• 12+2 Power Stages • 128GB Max DDR4 Memory • Non-ECC, Un-buffered Memory, 4 DIMMS, OptiMem II technology, Intel Extreme Memory Profile (XMP) • 2 x PCIe 3.0 x16 (x16 or dual x8), 1 x PCIe 3.0 x16 (max at x4 mode), 3 x PCIe 3.0 x1 • 2 x M.2_1 socket 3, with M key • 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 5, 10, Intel Optane Memory Ready • Intel I225-V 2.5Gb Ethernet • 4 x USB 3.2 Gen 2 port(s)(3 x Type-A +1 x Type-C), 2 x USB 3.2 Gen 1 Type-A ports, 2 x USB 2.0 ports • USB 3.2 Gen 1 header and front panel connector transfer speeds of up to 5 Gb/s • 2 x USB 2.0 headers • M.2 slot only (Key E) (Support CNVI interface) • ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
Warranty: 3 years
Our price:
R 6,699.95
 (incl. VAT)
Availability  check now
Shipping time 2-4 business days
Shipping cost calculate
New to Online Shopping? Read our Shopping Guide.
things to do ...
Overview & Features top
Specification top
General
Manufacturer Code
ASUS ROG STRIX Z490-F GAMING
Product Line
ROG Series
Product Type
Desktop
Processor Socket
LGA1200
Form Factor
ATX
Chipset
Intel Z490
Supported Processors
10th Gen Intel Core, Pentium Gold and Celeron Processors
CPU Gen Support
10th Gen

Memory
Memory Channels
Dual
Memory Type
DDR4
Memory Slots
4
Memory Bandwidth
DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Max System Memory
128 GB
ECC Support
-

Rear Panel Connectors
USB 2.0
2
USB 3.2 Type-A
5
3 x USB 3.2 Gen 2 Type-A port
2 x USB 3.2 Gen 1 Type-A port
USB 3.2 Type-C
1
1 x USB 3.2 Gen 2 Type-C port
D-Sub (VGA)
<not specified>
DVI
<not specified>
HDMI
1
Display Port
1
LAN (RJ45)
1
S/PDIF Ports
1 x Optical
OFC Audio Jacks
5
5 x Gold-plated audio jacks

Expansion Slots
PCI Express x16/x8/x4
3
2 x PCIe 3.0 x16 (x16 or dual x8)
1 x PCIe 3.0 x16 (max at x4 mode)
PCI Express x1
3
3 x PCIe 3.0 x1

Graphics System
Integrated Video
Yes
Multi-GPU Support
AMD 3-Way CrossFireX Technology
NVIDIA 2-Way SLI Technology

Internal I/O Connectors & Headers
24-pin ATX Power Supply Connector
1
8-pin ATX 12V Power Connector
1
4-pin ATX 12V Power Connector
1
AAFP Connector
1
System/Chassis FAN Headers
2
VRM_HS_FAN Header
1
2-pin Thermal Sensor Connector
1
Clear CMOS Jumper
1
M.2 Fan Header
1
Thunderbolt Connector
1
CPU FAN Connector
1
CPU OV Connector
1
CPU OPT Fan Connector
1
Water Pump Header
1
AIO Pump Header
1
Addressable LED Strip Headers
2
2 x Addressable RGB header
4-pin RGB LED Connector
2
2 x Aura RGB Strip Headers
USB 2.0 Headers
2
USB 3.2 Headers
1
1 x USB 3.2 Gen 1 Type-A
COM Port Header
1
Chassis Intrusion Connector
1

Networking
Wired LAN
Intel I225-V 2.5Gb Ethernet

Storage System
M.2 Ports
2
SATA 3.0 Ports
6
RAID
0/1/5/10
Optane Support
Yes

Audio
Integrated Audio
Yes
Audio Chip
ROG SupremeFX
Channels
8
